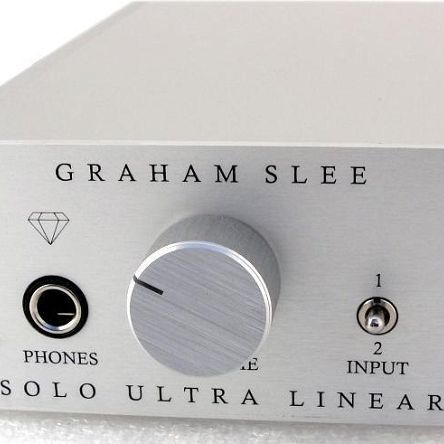

Wzmacniacz słuchawkowy Solo Ultra-Linear zapewnia gładkość i ciepło brzmienia wzmacniacza lampowego, ale z całą precyzją, szczegółowością i punktowym brzmieniem wzmacniacza tranzystorowego. Na wyposażeniu wysokiej klasy zasilacz zewnętrzny PSU1.
Headphone impedance range: | 8 to 2,000 Ohms / 16 to 600 Ohms preferred |
Power output: | (rms, both channels fully driven at 1% THD) |
32 Ohms: | 140mW/channel; 600 Ohms: 30mW/channel |
Input sensitivity (for specified power output into 32 Ohms): | 511mV rms |
Input impedance: | 37k Ohms at max volume; 50k Ohms at min volume |
Distortion: | (THD plus noise at 9 o'clock volume control setting (qtr power)) |
10Hz-20kHz: | better than 0.04%; 10Hz-1kHz: better than 0.02% |
Frequency response (±0,-3dB) 10Hz - 35kHz | |
Output noise: | (22Hz-22kHz, quasi-peak/un-weighted) -95dB |
Channel balance: | better than 1dB |
Crosstalk: | Left to Right -56dB; Input to Input -68dB |
Input selector centre-off position: | non-shorting; -38dB at max volume with 2V rms input (ref: 1kHz and 10kHz) |
Output Stage: | Bipolar class AB |
Supply voltage: | 24V DC unipolar |
Size: | (approx.) W: 107 x H: 50 x D: 185 (mm) inc. controls |
